1:1 Low Speed Dental Handpiece Kit Contra Angle Handpiece/ Straight Handpiece/ Air Motor
Components:
1 pc Straight handpiece
1 pc Contra angle handpiece
1 pc Air motor (2 or 4 holes)
Low Speed Dental Handpiece Features:
1 . Water/air channel isolation. keep perfect performance in instable air pressure and water pressure situation.
2. Contra angle head CA or FG head for your choice
3. 1:1 Directive drive ratio, max 20,000rpm with air motor, 40,000rpm with electric motor
4. Selected materials can withstand high temperature and high pressure at 135 degree
Technical Data
| Contra Angle | Staight | Air motor |
| Model:DR-11CH | Model:DR-11SH | Model:DR-11M |
| 1:1 Contra Angle Handpiece | Straight handpiece | Air Motor |
| Speed:Max 40000 RPM/MIN | Water press:200kpa | Speed:Max 40000 RPM/MIN |
| Burs: CA head Φ2.33~2.35mm FG head Φ1.59~1.60mm | Autoclavable:135° | 4 holes and 2 holes for option |
| Type:Internal type | Type:Internal type | Type:Internal type |
| ISO standard connection | Noise:≦70 | ISO standard connection |
Detailed photos:
|
Inner water spary Turn the sleeve to take burs (counterclockwise 100° ) |
|

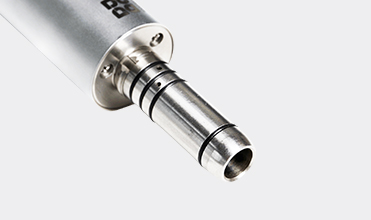

Universal air motor connection 2 hole and 4 hole can be supplied |
|
Push button chuck type CA, FG head for choice Blue ring 1:1 |
After each patient use , maintenance should be done as follows:
1. First remove the diamond burs , and clean up all the teeth on dental handpieces precipitate
2. Use a metal needle to clean the spray holes and fumaroles
Note: The spray holes and diamond burs into 40 -degree angle , fumaroles and diamond burs to a 30 degree angle
3. Place the clean lubricating oil is sprayed into the axial hole 1-2 seconds ( diamond burs is plugged holes )
4. In the bottom of the handpiece were ( with / without quick connector ) two kinds of styling , make the right amount of lubricant is injected into the bottom
5. The handpiece with quick connector combination ( first determine the water switch is turned off )
6. Replace the diamond burs , surrounded by white silk cloth handpiece head ( make sure the needle does not touch the diamond burs and white gauze , so as not to tie )
7. pedal depressed for about 20 seconds , look at whether there is in white gauze on any stain. If there are stains on the white gauze , again, add oil , starting from item 4 continued routine maintenance , know that white gauze until no stain
8. Finally, no more than 135 degrees Celsius temperature and high pressure sterilization
